This is the implementation of the rpcs protocol for Psion series 3 (SIBO) variant. More...

#include <rpcs16.h>

Inheritance diagram for rpcs16:

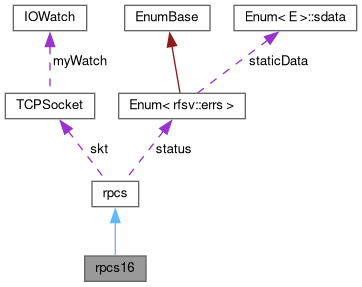

Collaboration diagram for rpcs16:

[legend]

Public Member Functions
Enum< rfsv::errs >	getCmdLine (const char *, std::string &)
	Retrieves the command line of a running process. More...

Enum< rfsv::errs >	getOwnerInfo (bufferArray &owner)
	Retrieve owner information of the remote machine. More...

Public Member Functions inherited from rpcs
virtual	~rpcs ()
	Virtual destructor. More...

void	reset ()
	Initializes a connection to the remote machine. More...

void	reconnect ()
	Attempts to re-establish a remote connection by first closing the socket, then connecting again to the ncpd daemon and finally calling reset. More...

Enum< rfsv::errs >	getStatus ()
	Retrieves the current status of the connection. More...

Enum< rfsv::errs >	getNCPversion (int &major, int &minor)
	Retrieves the version of the NCP protocol on the remote side. More...

Enum< rfsv::errs >	execProgram (const char program, const char args)
	Starts execution of a program on the remote machine. More...

Enum< rfsv::errs >	stopProgram (const char *program)
	Requests termination of a program running on the remote machine. More...

Enum< rfsv::errs >	queryProgram (const char *)

Enum< rfsv::errs >	formatOpen (const char drive, int &handle, int &count)
	Starts formatting a drive. More...

Enum< rfsv::errs >	formatRead (int handle)
	Continues a running format. More...

Enum< rfsv::errs >	getUniqueID (const char *, long &)

virtual Enum< rfsv::errs >	getOwnerInfo (bufferArray &owner)=0
	Retrieve owner information of the remote machine. More...

Enum< rfsv::errs >	getMachineType (Enum< machs > &type)
	Retrieves the type of machine on the remote side as defined in machs. More...

Enum< rfsv::errs >	fuser (const char name, char buf, int maxlen)
	Retrieves the name of a process, having a given file opened on the remote side. More...

Enum< rfsv::errs >	quitServer (void)
	Requests the remote server to terminate. More...

Enum< rfsv::errs >	queryPrograms (processList &ret)
	Retrieves a list of all running Programs. More...

virtual Enum< rfsv::errs >	getCmdLine (const char *process, std::string &ret)=0
	Retrieves the command line of a running process. More...

virtual Enum< rfsv::errs >	getMachineInfo (machineInfo &machineInfo)
	Retrieve general Information about the connected machine. More...

virtual Enum< rfsv::errs >	closeHandle (uint32_t handle)
	Release an rpcs handle. More...

virtual Enum< rfsv::errs >	regOpenIter (uint32_t, char *, uint16_t &)

virtual Enum< rfsv::errs >	regReadIter (uint16_t)

virtual Enum< rfsv::errs >	regWrite (void)

virtual Enum< rfsv::errs >	regRead (void)

virtual Enum< rfsv::errs >	regDelete (void)

virtual Enum< rfsv::errs >	setTime (time_t time)

virtual Enum< rfsv::errs >	configRead (uint32_t size, bufferStore &data)
	Read from Series 5 scratch RAM. More...

virtual Enum< rfsv::errs >	configWrite (bufferStore data)
	Write to Series 5 scratch RAM. More...

virtual Enum< rfsv::errs >	queryOpen (void)

virtual Enum< rfsv::errs >	queryRead (void)

Private Member Functions
	rpcs16 (TCPSocket *)

Friends
class	rpcsfactory

Additional Inherited Members
Public Types inherited from rpcs
enum	machs { PSI_MACH_UNKNOWN = 0 , PSI_MACH_PC = 1 , PSI_MACH_MC = 2 , PSI_MACH_HC = 3 , PSI_MACH_S3 = 4 , PSI_MACH_S3A = 5 , PSI_MACH_WORKABOUT = 6 , PSI_MACH_SIENA = 7 , PSI_MACH_S3C = 8 , PSI_MACH_S5 = 32 , PSI_MACH_WINC = 33 }
	The known machine types. More...

enum	languages { PSI_LANG_TEST = 0 , PSI_LANG_en_GB = 1 , PSI_LANG_fr_FR = 2 , PSI_LANG_de_DE = 3 , PSI_LANG_es_ES = 4 , PSI_LANG_it_IT = 5 , PSI_LANG_sv_SE = 6 , PSI_LANG_da_DK = 7 , PSI_LANG_no_NO = 8 , PSI_LANG_fi_FI = 9 , PSI_LANG_en_US = 10 , PSI_LANG_fr_CH = 11 , PSI_LANG_de_CH = 12 , PSI_LANG_pt_PT = 13 , PSI_LANG_tr_TR = 14 , PSI_LANG_is_IS = 15 , PSI_LANG_ru_RU = 16 , PSI_LANG_hu_HU = 17 , PSI_LANG_nl_NL = 18 , PSI_LANG_nl_BE = 19 , PSI_LANG_en_AU = 20 , PSI_LANG_fr_BE = 21 , PSI_LANG_de_AT = 22 , PSI_LANG_en_NZ = 23 , PSI_LANG_fr_CA = 24 , PSI_LANG_cs_CZ = 25 , PSI_LANG_sk_SK = 26 , PSI_LANG_pl_PL = 27 , PSI_LANG_sl_SI = 28 }
	The known interface languages. More...

enum	batterystates { PSI_BATT_DEAD = 0 , PSI_BATT_VERYLOW = 1 , PSI_BATT_LOW = 2 , PSI_BATT_GOOD = 3 }
	The known battery states. More...

typedef struct rpcs::machineInfo_t	machineInfo
	This struct holds the data returned by rpcs::getMachineInfo. More...

Protected Types inherited from rpcs
enum	commands { QUERY_NCP = 0x00 , EXEC_PROG = 0x01 , QUERY_DRIVE = 0x02 , STOP_PROG = 0x03 , QUERY_PROG = 0x04 , FORMAT_OPEN = 0x05 , FORMAT_READ = 0x06 , GET_UNIQUEID = 0x07 , GET_OWNERINFO = 0x08 , GET_MACHINETYPE = 0x09 , GET_CMDLINE = 0x0a , FUSER = 0x0b , GET_MACHINE_INFO = 0x64 , CLOSE_HANDLE = 0x65 , REG_OPEN_ITER = 0x66 , REG_READ_ITER = 0x67 , REG_WRITE = 0x68 , REG_READ = 0x69 , REG_DELETE = 0x6a , SET_TIME = 0x6b , CONFIG_OPEN = 0x6c , CONFIG_READ = 0x6d , CONFIG_WRITE = 0x6e , QUERY_OPEN = 0x6f , QUERY_READ = 0x70 , QUIT_SERVER = 0xff }
	The possible commands. More...

Protected Member Functions inherited from rpcs
virtual Enum< rfsv::errs >	configOpen (uint16_t &handle, uint32_t size)
	Prepare scratch RAM in Series 5 for read/write. More...

bool	sendCommand (enum commands cc, bufferStore &data)
	Sends a command to the remote side. More...

Enum< rfsv::errs >	getResponse (bufferStore &data, bool statusIsFirstByte)

const char *	getConnectName ()

Protected Attributes inherited from rpcs
TCPSocket *	skt
	The socket, used for communication with ncpd. More...

Enum< rfsv::errs >	status
	The current status of the connection. More...

int	mtCacheS5mx
	Flag: getMachineType and getMachineInfo have been called and the machine is an S5mx. More...

Detailed Description

This is the implementation of the rpcs protocol for Psion series 3 (SIBO) variant.

You normally never create objects of this class directly. Thus the constructor is private. Use rpcsfactory for creating an instance of rpcs . For a complete documentation, see rpcs .

Definition at line 37 of file rpcs16.h.

Constructor & Destructor Documentation

◆ rpcs16()

rpcs16::rpcs16 ( TCPSocket * _skt )

private

Definition at line 34 of file rpcs16.cc.

Member Function Documentation

◆ getCmdLine()

Enum< rfsv::errs > rpcs16::getCmdLine	(	const char *	process,
		std::string &	ret
	)

virtual

Retrieves the command line of a running process.

This function works with both SIBO and EPOC. Note: rpcs::queryPrograms calls this method internally and sets the args member of PsiProcess , so you usually don't have to call this method yourself.

Parameters

process	Name of process. Format: processname.$pid
ret	The program name and arguments are returned here.

Returns: Psion error code. 0 = Ok.

Implements rpcs.

Definition at line 41 of file rpcs16.cc.

◆ getOwnerInfo()

Enum< rfsv::errs > rpcs16::getOwnerInfo ( bufferArray & owner )

virtual

Retrieve owner information of the remote machine.

This function is working with both SIBO and EPOC devices.

Parameters

owner A bufferArray, containing the lines of the owner info upon return.

Returns: A psion error code. 0 = Ok.

Implements rpcs.

Definition at line 55 of file rpcs16.cc.

Friends And Related Function Documentation

◆ rpcsfactory

friend class rpcsfactory

friend

Definition at line 38 of file rpcs16.h.

The documentation for this class was generated from the following files:

lib/rpcs16.h
lib/rpcs16.cc
