Remote procedure call services via PLP. More...

#include <rpcs.h>

Inheritance diagram for rpcs:

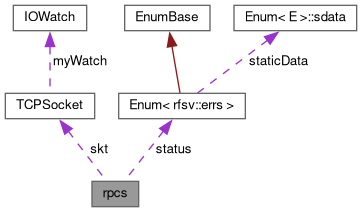

Collaboration diagram for rpcs:

[legend]

Classes
struct	machineInfo_t
	This struct holds the data returned by rpcs::getMachineInfo. More...

Public Types
enum	machs { PSI_MACH_UNKNOWN = 0 , PSI_MACH_PC = 1 , PSI_MACH_MC = 2 , PSI_MACH_HC = 3 , PSI_MACH_S3 = 4 , PSI_MACH_S3A = 5 , PSI_MACH_WORKABOUT = 6 , PSI_MACH_SIENA = 7 , PSI_MACH_S3C = 8 , PSI_MACH_S5 = 32 , PSI_MACH_WINC = 33 }
	The known machine types. More...

enum	languages { PSI_LANG_TEST = 0 , PSI_LANG_en_GB = 1 , PSI_LANG_fr_FR = 2 , PSI_LANG_de_DE = 3 , PSI_LANG_es_ES = 4 , PSI_LANG_it_IT = 5 , PSI_LANG_sv_SE = 6 , PSI_LANG_da_DK = 7 , PSI_LANG_no_NO = 8 , PSI_LANG_fi_FI = 9 , PSI_LANG_en_US = 10 , PSI_LANG_fr_CH = 11 , PSI_LANG_de_CH = 12 , PSI_LANG_pt_PT = 13 , PSI_LANG_tr_TR = 14 , PSI_LANG_is_IS = 15 , PSI_LANG_ru_RU = 16 , PSI_LANG_hu_HU = 17 , PSI_LANG_nl_NL = 18 , PSI_LANG_nl_BE = 19 , PSI_LANG_en_AU = 20 , PSI_LANG_fr_BE = 21 , PSI_LANG_de_AT = 22 , PSI_LANG_en_NZ = 23 , PSI_LANG_fr_CA = 24 , PSI_LANG_cs_CZ = 25 , PSI_LANG_sk_SK = 26 , PSI_LANG_pl_PL = 27 , PSI_LANG_sl_SI = 28 }
	The known interface languages. More...

enum	batterystates { PSI_BATT_DEAD = 0 , PSI_BATT_VERYLOW = 1 , PSI_BATT_LOW = 2 , PSI_BATT_GOOD = 3 }
	The known battery states. More...

typedef struct rpcs::machineInfo_t	machineInfo
	This struct holds the data returned by rpcs::getMachineInfo. More...

Public Member Functions
virtual	~rpcs ()
	Virtual destructor. More...

void	reset ()
	Initializes a connection to the remote machine. More...

void	reconnect ()
	Attempts to re-establish a remote connection by first closing the socket, then connecting again to the ncpd daemon and finally calling reset. More...

Enum< rfsv::errs >	getStatus ()
	Retrieves the current status of the connection. More...

Enum< rfsv::errs >	getNCPversion (int &major, int &minor)
	Retrieves the version of the NCP protocol on the remote side. More...

Enum< rfsv::errs >	execProgram (const char program, const char args)
	Starts execution of a program on the remote machine. More...

Enum< rfsv::errs >	stopProgram (const char *program)
	Requests termination of a program running on the remote machine. More...

Enum< rfsv::errs >	queryProgram (const char *)

Enum< rfsv::errs >	formatOpen (const char drive, int &handle, int &count)
	Starts formatting a drive. More...

Enum< rfsv::errs >	formatRead (int handle)
	Continues a running format. More...

Enum< rfsv::errs >	getUniqueID (const char *, long &)

virtual Enum< rfsv::errs >	getOwnerInfo (bufferArray &owner)=0
	Retrieve owner information of the remote machine. More...

Enum< rfsv::errs >	getMachineType (Enum< machs > &type)
	Retrieves the type of machine on the remote side as defined in machs. More...

Enum< rfsv::errs >	fuser (const char name, char buf, int maxlen)
	Retrieves the name of a process, having a given file opened on the remote side. More...

Enum< rfsv::errs >	quitServer (void)
	Requests the remote server to terminate. More...

Enum< rfsv::errs >	queryPrograms (processList &ret)
	Retrieves a list of all running Programs. More...

virtual Enum< rfsv::errs >	getCmdLine (const char *process, std::string &ret)=0
	Retrieves the command line of a running process. More...

virtual Enum< rfsv::errs >	getMachineInfo (machineInfo &machineInfo)
	Retrieve general Information about the connected machine. More...

virtual Enum< rfsv::errs >	closeHandle (uint32_t handle)
	Release an rpcs handle. More...

virtual Enum< rfsv::errs >	regOpenIter (uint32_t, char *, uint16_t &)

virtual Enum< rfsv::errs >	regReadIter (uint16_t)

virtual Enum< rfsv::errs >	regWrite (void)

virtual Enum< rfsv::errs >	regRead (void)

virtual Enum< rfsv::errs >	regDelete (void)

virtual Enum< rfsv::errs >	setTime (time_t time)

virtual Enum< rfsv::errs >	configRead (uint32_t size, bufferStore &data)
	Read from Series 5 scratch RAM. More...

virtual Enum< rfsv::errs >	configWrite (bufferStore data)
	Write to Series 5 scratch RAM. More...

virtual Enum< rfsv::errs >	queryOpen (void)

virtual Enum< rfsv::errs >	queryRead (void)

Protected Types
enum	commands { QUERY_NCP = 0x00 , EXEC_PROG = 0x01 , QUERY_DRIVE = 0x02 , STOP_PROG = 0x03 , QUERY_PROG = 0x04 , FORMAT_OPEN = 0x05 , FORMAT_READ = 0x06 , GET_UNIQUEID = 0x07 , GET_OWNERINFO = 0x08 , GET_MACHINETYPE = 0x09 , GET_CMDLINE = 0x0a , FUSER = 0x0b , GET_MACHINE_INFO = 0x64 , CLOSE_HANDLE = 0x65 , REG_OPEN_ITER = 0x66 , REG_READ_ITER = 0x67 , REG_WRITE = 0x68 , REG_READ = 0x69 , REG_DELETE = 0x6a , SET_TIME = 0x6b , CONFIG_OPEN = 0x6c , CONFIG_READ = 0x6d , CONFIG_WRITE = 0x6e , QUERY_OPEN = 0x6f , QUERY_READ = 0x70 , QUIT_SERVER = 0xff }
	The possible commands. More...

Protected Member Functions
virtual Enum< rfsv::errs >	configOpen (uint16_t &handle, uint32_t size)
	Prepare scratch RAM in Series 5 for read/write. More...

bool	sendCommand (enum commands cc, bufferStore &data)
	Sends a command to the remote side. More...

Enum< rfsv::errs >	getResponse (bufferStore &data, bool statusIsFirstByte)

const char *	getConnectName ()

Protected Attributes
TCPSocket *	skt
	The socket, used for communication with ncpd. More...

Enum< rfsv::errs >	status
	The current status of the connection. More...

int	mtCacheS5mx
	Flag: getMachineType and getMachineInfo have been called and the machine is an S5mx. More...

Detailed Description

Remote procedure call services via PLP.

rpcs provides an interface for communicating with the Psion's remote procedure call service. The generic facilities for both, EPOC and SIBO are implemented here, while the facilities, unique to each of those variants are implemented in rpcs32 or rpcs16 respectively. These normally are instantiated by using rpcsfactory .

Author: Fritz Elfert felfe.nosp@m.rt@t.nosp@m.o.com

Definition at line 51 of file rpcs.h.

Member Typedef Documentation

◆ machineInfo

typedef struct rpcs::machineInfo_t rpcs::machineInfo

This struct holds the data returned by rpcs::getMachineInfo.

Member Enumeration Documentation

◆ batterystates

enum rpcs::batterystates

The known battery states.

Enumerator
PSI_BATT_DEAD
PSI_BATT_VERYLOW
PSI_BATT_LOW
PSI_BATT_GOOD

Definition at line 109 of file rpcs.h.

◆ commands

enum rpcs::commands

protected

The possible commands.

Enumerator
QUERY_NCP
EXEC_PROG
QUERY_DRIVE
STOP_PROG
QUERY_PROG
FORMAT_OPEN
FORMAT_READ
GET_UNIQUEID
GET_OWNERINFO
GET_MACHINETYPE
GET_CMDLINE
FUSER
GET_MACHINE_INFO
CLOSE_HANDLE
REG_OPEN_ITER
REG_READ_ITER
REG_WRITE
REG_READ
REG_DELETE
SET_TIME
CONFIG_OPEN
CONFIG_READ
CONFIG_WRITE
QUERY_OPEN
QUERY_READ
QUIT_SERVER

Definition at line 430 of file rpcs.h.

◆ languages

enum rpcs::languages

The known interface languages.

Enumerator
PSI_LANG_TEST
PSI_LANG_en_GB
PSI_LANG_fr_FR
PSI_LANG_de_DE
PSI_LANG_es_ES
PSI_LANG_it_IT
PSI_LANG_sv_SE
PSI_LANG_da_DK
PSI_LANG_no_NO
PSI_LANG_fi_FI
PSI_LANG_en_US
PSI_LANG_fr_CH
PSI_LANG_de_CH
PSI_LANG_pt_PT
PSI_LANG_tr_TR
PSI_LANG_is_IS
PSI_LANG_ru_RU
PSI_LANG_hu_HU
PSI_LANG_nl_NL
PSI_LANG_nl_BE
PSI_LANG_en_AU
PSI_LANG_fr_BE
PSI_LANG_de_AT
PSI_LANG_en_NZ
PSI_LANG_fr_CA
PSI_LANG_cs_CZ
PSI_LANG_sk_SK
PSI_LANG_pl_PL
PSI_LANG_sl_SI

Definition at line 74 of file rpcs.h.

◆ machs

enum rpcs::machs

The known machine types.

Enumerator
PSI_MACH_UNKNOWN
PSI_MACH_PC
PSI_MACH_MC
PSI_MACH_HC
PSI_MACH_S3
PSI_MACH_S3A
PSI_MACH_WORKABOUT
PSI_MACH_SIENA
PSI_MACH_S3C
PSI_MACH_S5
PSI_MACH_WINC

Definition at line 56 of file rpcs.h.

Constructor & Destructor Documentation

◆ ~rpcs()

rpcs::~rpcs ( )

virtual

Virtual destructor.

Definition at line 89 of file rpcs.cc.

Member Function Documentation

◆ closeHandle()

virtual Enum< rfsv::errs > rpcs::closeHandle ( uint32_t handle )

inlinevirtual

Release an rpcs handle.

This function works with EPOC only. Using it with SIBO machines, returns always an error code E_PSI_NOT_SIBO. It releases a handle, obtained by a previous call to rpcs::configOpen .

Parameters

handle The handle to close.

Returns: A psion error code. 0 = Ok.

Definition at line 365 of file rpcs.h.

◆ configOpen()

virtual Enum< rfsv::errs > rpcs::configOpen	(	uint16_t &	handle,
		uint32_t	size
	)

inlineprotectedvirtual

Prepare scratch RAM in Series 5 for read/write.

This function works with EPOC only. Using it with SIBO machines, returns always an error code E_PSI_NOT_SIBO. It prepares a scratch area on the EPOC machine for a following use from within rpcs::configRead or rpcs::configWrite . These functions call rpcs::closeHandle on exit. The contents of the scratch area is stored in RAM of the Series 5, therefore it gets lost when the Series 5 is switched off.

Parameters

handle	The handle to be used in rpcs::configRead , rpcs::configWrite and rpcs::closeHandle is returned here.
size	The number of bytes you want to use.

Returns: A psion error code. 0 = Ok.

Reimplemented in rpcs32.

Definition at line 483 of file rpcs.h.

◆ configRead()

virtual Enum< rfsv::errs > rpcs::configRead	(	uint32_t	size,
		bufferStore &	data
	)

inlinevirtual

Read from Series 5 scratch RAM.

This function works with EPOC only. Using it with SIBO machines, returns always an error code E_PSI_NOT_SIBO. It reads raw data from the scratch RAM of the Series 5.

Parameters

size	The amount of data to be read.
data	The content of the scratch RAM is returned here.

Returns: A psion error code. 0 = Ok.

Reimplemented in rpcs32.

Definition at line 393 of file rpcs.h.

◆ configWrite()

virtual Enum< rfsv::errs > rpcs::configWrite ( bufferStore data )

inlinevirtual

Write to Series 5 scratch RAM.

This function works with EPOC only. Using it with SIBO machines, returns always an error code E_PSI_NOT_SIBO. It writes raw data to the scatch RAM of the Series 5.

Parameters

data	The data to be written to the scratch RAM.

Returns: A psion error code. 0 = Ok.

Reimplemented in rpcs32.

Definition at line 407 of file rpcs.h.

◆ execProgram()

Enum< rfsv::errs > rpcs::execProgram	(	const char *	program,
		const char *	args
	)

Starts execution of a program on the remote machine.

This function is working with both SIBO and EPOC devices.

Parameters

program	The full path of the executable on the remote machine
args	The arguments for this program, separated by space.

Returns: A psion error code. 0 = Ok.

This is a hack for the jotter app on mx5 pro. (and probably others) Jotter seems to read its arguments one char past normal apps. Without this hack, The Drive-Character gets lost. Other apps don't seem to be hurt by the additional blank.

Definition at line 198 of file rpcs.cc.

◆ formatOpen()

Enum< rfsv::errs > rpcs::formatOpen	(	const char	drive,
		int &	handle,
		int &	count
	)

Starts formatting a drive.

This function is working with both SIBO and EPOC devices. After calling formatOpen, formatRead should be called n times with the returned handle where n is the value of the returned parameter count.

Parameters

drive	The drive character to format (e.g: 'C', 'D' etc).
handle	The handle for calling formatRead is returned here.
count	The number of required calls to formatRead is returned here.

Returns: A psion error code. 0 = Ok.

Definition at line 322 of file rpcs.cc.

◆ formatRead()

Enum< rfsv::errs > rpcs::formatRead ( int handle )

Continues a running format.

This function is working with both SIBO and EPOC devices. Call this function with the handle, returned by formatOpen.

Returns: A psion error code. 0 = Ok.

Definition at line 342 of file rpcs.cc.

◆ fuser()

Enum< rfsv::errs > rpcs::fuser	(	const char *	name,
		char *	buf,
		int	maxlen
	)

Retrieves the name of a process, having a given file opened on the remote side.

This function is working with both SIBO and EPOC devices

Parameters

name	The full path of a file to be checked for being used by a program.
buf	A buffer which gets filled with the program's name.
maxlen	The maximum capacity of the buffer.

Definition at line 391 of file rpcs.cc.

◆ getCmdLine()

virtual Enum< rfsv::errs > rpcs::getCmdLine	(	const char *	process,
		std::string &	ret
	)

pure virtual

Retrieves the command line of a running process.

This function works with both SIBO and EPOC. Note: rpcs::queryPrograms calls this method internally and sets the args member of PsiProcess , so you usually don't have to call this method yourself.

Parameters

process	Name of process. Format: processname.$pid
ret	The program name and arguments are returned here.

Returns: Psion error code. 0 = Ok.

Implemented in rpcs16, and rpcs32.

◆ getConnectName()

const char * rpcs::getConnectName ( void )

protected

Definition at line 125 of file rpcs.cc.

◆ getMachineInfo()

virtual Enum< rfsv::errs > rpcs::getMachineInfo ( machineInfo & machineInfo )

inlinevirtual

Retrieve general Information about the connected machine.

This function works with EPOC only. Using it with SIBO machines, returns always an error code E_PSI_NOT_SIBO.

Parameters

machineInfo The struct holding all information on return.

Returns: Psion error code. 0 = Ok.

Reimplemented in rpcs32.

Definition at line 351 of file rpcs.h.

◆ getMachineType()

Enum< rfsv::errs > rpcs::getMachineType ( Enum< machs > & type )

Retrieves the type of machine on the remote side as defined in machs.

This function is working with both SIBO and EPOC devices

Parameters

type	The code describing the type of machine on the remote side is stored here on return.

Returns: A psion error code. 0 = Ok.

Definition at line 370 of file rpcs.cc.

◆ getNCPversion()

Enum< rfsv::errs > rpcs::getNCPversion	(	int &	major,
		int &	minor
	)

Retrieves the version of the NCP protocol on the remote side.

This function is working with both SIBO and EPOC devices.

Parameters

major	The major part of the NCP version. Valid only if returned with no error.
minor	The minor part of the NCP version. Valid only if returned with no error.

Returns: A psion error code. 0 = Ok.

Definition at line 181 of file rpcs.cc.

◆ getOwnerInfo()

virtual Enum< rfsv::errs > rpcs::getOwnerInfo ( bufferArray & owner )

pure virtual

Retrieve owner information of the remote machine.

This function is working with both SIBO and EPOC devices.

Parameters

owner A bufferArray, containing the lines of the owner info upon return.

Returns: A psion error code. 0 = Ok.

Implemented in rpcs16, and rpcs32.

◆ getResponse()

Enum< rfsv::errs > rpcs::getResponse	(	bufferStore &	data,
		bool	statusIsFirstByte
	)

protected

Definition at line 156 of file rpcs.cc.

◆ getStatus()

Enum< rfsv::errs > rpcs::getStatus ( void )

Retrieves the current status of the connection.

Returns: The connection status.

Definition at line 119 of file rpcs.cc.

◆ getUniqueID()

Enum< rfsv::errs > rpcs::getUniqueID	(	const char *	device,
		long &	id
	)

Definition at line 353 of file rpcs.cc.

◆ queryOpen()

virtual Enum< rfsv::errs > rpcs::queryOpen ( void )

inlinevirtual

Definition at line 410 of file rpcs.h.

◆ queryProgram()

Enum< rfsv::errs > rpcs::queryProgram ( const char * program )

Definition at line 235 of file rpcs.cc.

◆ queryPrograms()

Enum< rfsv::errs > rpcs::queryPrograms ( processList & ret )

Retrieves a list of all running Programs.

This function works with both SIBO and EPOC.

Parameters

ret	The list of currently running processes is returned here.

Returns: A psion error code. 0 = Ok.

Definition at line 246 of file rpcs.cc.

◆ queryRead()

virtual Enum< rfsv::errs > rpcs::queryRead ( void )

inlinevirtual

Definition at line 412 of file rpcs.h.

◆ quitServer()

Enum< rfsv::errs > rpcs::quitServer ( void )

Requests the remote server to terminate.

This function is working with both SIBO and EPOC devices. There is usually no need to call this function, because the remote server is automatically stopped on disconnect.

Returns: A psion error code. 0 = Ok.

Definition at line 409 of file rpcs.cc.

◆ reconnect()

void rpcs::reconnect ( void )

Attempts to re-establish a remote connection by first closing the socket, then connecting again to the ncpd daemon and finally calling reset.

Definition at line 97 of file rpcs.cc.

◆ regDelete()

virtual Enum< rfsv::errs > rpcs::regDelete ( void )

inlinevirtual

Definition at line 376 of file rpcs.h.

◆ regOpenIter()

virtual Enum< rfsv::errs > rpcs::regOpenIter	(	uint32_t	,
		char *	,
		uint16_t &
	)

inlinevirtual

Reimplemented in rpcs32.

Definition at line 368 of file rpcs.h.

◆ regRead()

virtual Enum< rfsv::errs > rpcs::regRead ( void )

inlinevirtual

Definition at line 374 of file rpcs.h.

◆ regReadIter()

virtual Enum< rfsv::errs > rpcs::regReadIter ( uint16_t )

inlinevirtual

Reimplemented in rpcs32.

Definition at line 370 of file rpcs.h.

◆ regWrite()

virtual Enum< rfsv::errs > rpcs::regWrite ( void )

inlinevirtual

Definition at line 372 of file rpcs.h.

◆ reset()

void rpcs::reset ( void )

Initializes a connection to the remote machine.

Definition at line 104 of file rpcs.cc.

◆ sendCommand()

bool rpcs::sendCommand	(	enum commands	cc,
		bufferStore &	data
	)

protected

Sends a command to the remote side.

If communication fails, a reconnect is triggered and a second attempt to transmit the request is attempted. If that second attempt fails, the function returns an error and sets rpcs::status to E_PSI_FILE_DISC.

Parameters

cc	The command to execute on the remote side.
data	Additional data for this command.

Returns: true on success, false on failure.

Definition at line 134 of file rpcs.cc.

◆ setTime()

virtual Enum< rfsv::errs > rpcs::setTime ( time_t time )

inlinevirtual

Reimplemented in rpcs32.

Definition at line 378 of file rpcs.h.

◆ stopProgram()

Enum< rfsv::errs > rpcs::stopProgram ( const char * program )

Requests termination of a program running on the remote machine.

This function is working with both SIBO and EPOC devices.

Parameters

program

Returns: A psion error code. 0 = Ok.

Definition at line 224 of file rpcs.cc.

Member Data Documentation

◆ mtCacheS5mx

int rpcs::mtCacheS5mx

protected

Flag: getMachineType and getMachineInfo have been called and the machine is an S5mx.

Definition at line 463 of file rpcs.h.

◆ skt

TCPSocket* rpcs::skt

protected

The socket, used for communication with ncpd.

Definition at line 420 of file rpcs.h.

◆ status

Enum<rfsv::errs> rpcs::status

protected

The current status of the connection.

Definition at line 425 of file rpcs.h.

The documentation for this class was generated from the following files:

lib/rpcs.h
lib/rpcs.cc

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ machineInfo

Member Enumeration Documentation

◆ batterystates

◆ commands

◆ languages

◆ machs

Constructor & Destructor Documentation

◆ ~rpcs()

Member Function Documentation

◆ closeHandle()

◆ configOpen()

◆ configRead()

◆ configWrite()

◆ execProgram()

◆ formatOpen()

◆ formatRead()

◆ fuser()

◆ getCmdLine()

◆ getConnectName()

◆ getMachineInfo()

◆ getMachineType()

◆ getNCPversion()

◆ getOwnerInfo()

◆ getResponse()

◆ getStatus()

◆ getUniqueID()

◆ queryOpen()

◆ queryProgram()

◆ queryPrograms()

◆ queryRead()

◆ quitServer()

◆ reconnect()

◆ regDelete()

◆ regOpenIter()

◆ regRead()

◆ regReadIter()

◆ regWrite()

◆ reset()

◆ sendCommand()

◆ setTime()

◆ stopProgram()

Member Data Documentation

◆ mtCacheS5mx

◆ skt

◆ status
